SNS CNC Equipments Private Limited

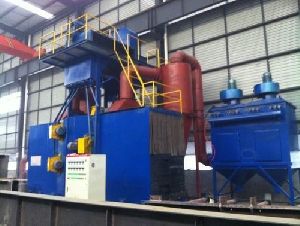

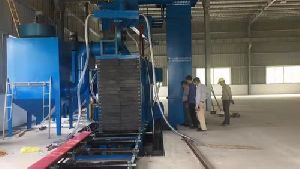

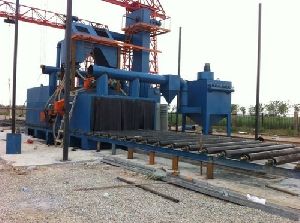

Shot Blasting Machine

Shot Blasting Machine
Price : 38 Lac / Set(s)Get Best Price

MOQ : 1 Set(s)

Business Type Manufacturer, Exporter, Supplier, Trader, Distributor, Importer
Automatic Grade Automatic
Application Shot Blasting
Material To Be Blasted Beam
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Number of Doors
Double Door
Weight of Total Machine
16 Ton, 18 Ton
Number of Seals
3 Layers, 4 Layers
Features
Efficient, Fast, Stable
Payment Terms
Other

Quantity of blasting Heads

  • 8
  • 10
  • 10
  • 2

Size of Working Door

  • 1500*2000mm
  • 1200*3000mm
  • 1500*3000mm

Head arrangement

  • 2 at the top, 2 on the left , 2 on the right , 2 in the lower Remarks: Symmetrical cross arrangement
  • 2 at the top, 3 on the left , 3 on the right , 2 in the lower Remarks: Symmetrical cross arrangement
  • 2 at the top, 3 on the left, 3 on the right, 2 in the lower Remarks: Symmetrical cross arrangement

Body length

  • 6000mm
  • 6500mm
  • 7000mm

Cleaning speed

  • 1500-2500mm/min
  • 2000-3000mm/min
  • 3500-5000mm/min

Blasting material

  • H beam
  • H beam+H-shaped steel extended legs
  • H beam+H-shaped steel extended legs+H-beamothers parts

Surface roughness

  • Ra15-65μm (adjustable)

Working hours

  • 16H/Day
  • 20H/Day
  • 24H/Day

Adding pellets for the first time

  • 3T
  • 5T
  • 8T
  • 11

Input roller length

  • 10 M
  • 12 M
  • 12 M
  • 12 M

Spiral delivery volume

  • 105T / hour
  • 110T / hour
  • 120T / hour

Lift capacity

  • 105T / hour
  • 110T / hour
  • 120T / hour

Main chamber body

  • High cast iron

Guard plate weight

  • 2.5T /set
  • 3.2T /set
  • 4T /set

L X W X H

  • 26000x2000x3500mm
  • 30500 x2400x3500mm
  • 31000x2700x3500mm
Read More...
